SKETCH TO REAL

Sketch2Real generates photorealistic images from colored sketches using a conditional diffusion model built on a U-Net architecture, trained on the COCO dataset.

Sketch Generation

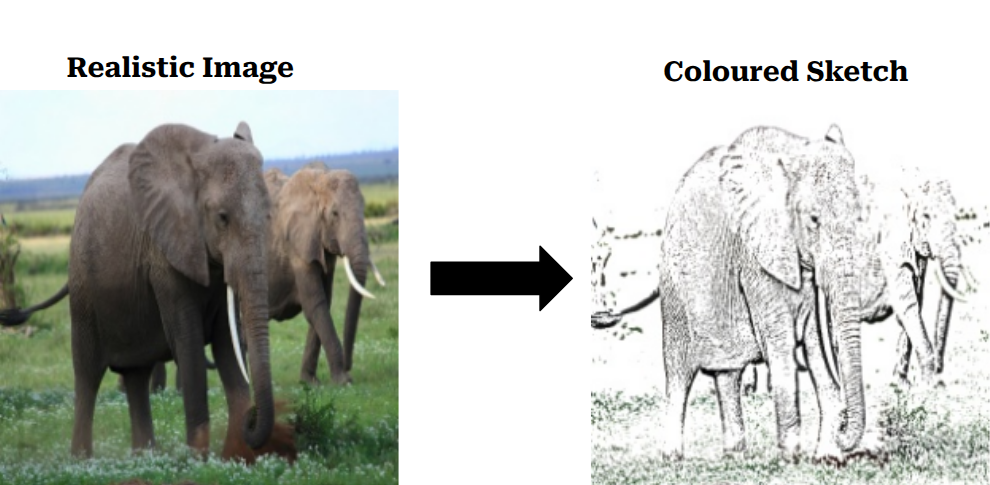

Given a COCO image, a paired sketch is generated by converting to grayscale, inverting, applying Gaussian blur, thresholding for edges, then replacing those edges with the original colors.

How it Works

The model reverses a diffusion process — starting from Gaussian noise and iteratively denoising, conditioned on the sketch. The U-Net takes the noisy image and sketch as a 6-channel input plus a timestep embedding, and predicts the noise to remove.

Model 1 — Proof of Concept

5K images at 128×128, cosine noise schedule, L1 loss. Training plateaued around epoch 160 — dataset too small to generalize further.

Model 2 — Full Scale

118K images at 256×256, offset cosine schedule, MSE loss, CosineAnnealingLR. Significantly sharper results.

Check out the GitHub repo for full architecture details, training instructions, and dataset setup.
