Rapidly-exploring Random Trees (RRTs) for 2D path planning.

An RRT is a set of vertices (configurations) and edges (connections between configurations). Each iteration samples a random point in the domain, finds the nearest existing vertex, and takes a small step of size $\Delta$ toward the sample. If you run it for long enough, you get close to uniform coverage over the whole space.

Simple RRT

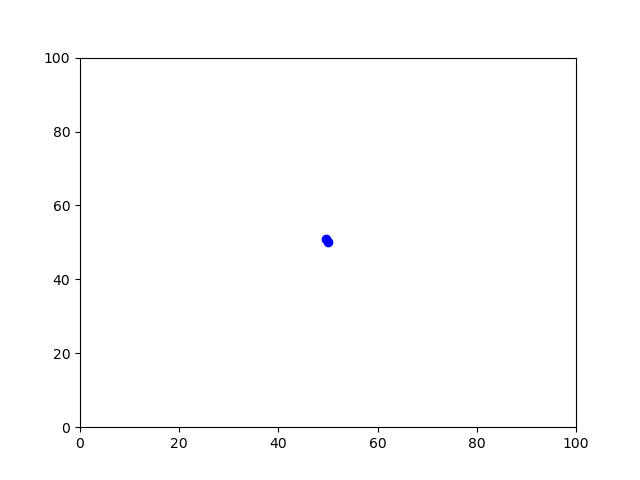

RRT growth

For implementing a Simple RRT:

  • Domain: $D = [0,100] \times [0,100]$
  • Initial configuration: $q_{\text{init}} = (50, 50)$
  • Step size: $\Delta = 1$

At each iteration, the following steps are performed

  1. Sample a random point $q_{\text{rand}}$ for $x$ and $y$.
  2. Find the nearest vertex $q_{\text{near}}$ by looping through all vertices in $G$ and taking the one with minimum Euclidean distance.
  3. Compute the unit direction vector from $q_{\text{near}}$ to $q_{\text{rand}}$ and step by $\Delta=1$ to get $q_{\text{new}}$:

$$q_{\text{new}} = q_{\text{near}} + \Delta,\frac{q_{\text{rand}} - q_{\text{near}}}{\lVert q_{\text{rand}} - q_{\text{near}} \rVert}.$$

  1. Add $q_{\text{new}}$ to $G$ and plot the edge $(q_{\text{near}}, q_{\text{new}})$ as it grows (I used interactive plotting with a small pause each iteration).

Running this for $K=1000$ iterations produces a tree that spreads outward from the start and begins to fill the entire domain. As the number of samples increases, the RRT provides increasingly uniform coverage of the free space.

RRT with circular obstacles

RRT growth

For this circular obstacles are added and a new vertex is only accepted if the edge from $q_{\text{near}}$ to $q_{\text{new}}$ is collision-free.

Collision checking

Before adding $q_{\text{new}}$, check whether the line segment $(q_{\text{near}}, q_{\text{new}})$ intersects any obstacle circle. If it collides, ignore that sample and continue.

Goal connection + path extraction

After adding a new vertex, check for a collision-free straight-line connection from that vertex to the goal. If it exists, terminate and recover the path by walking parent pointers back to $q_{\text{init}}$.

The final plot shows the obstacle circles, the full RRT, the start/goal, and the extracted path highlighted.
